5 Creative Divi Header Module Styles You Can Achieve Using Built-in Settings

Last Updated on September 16, 2022 by 10 Comments

5 Creative Divi Header Module Styles You Can Achieve Using Built-in Settings
Blog / Divi Resources / 5 Creative Divi Header Module Styles You Can Achieve Using Built-in Settings
Play Button

Out of the box, the Divi Header Module can create striking header designs with only a few adjustments. This makes it an extremely popular module when designing headers for your website in Divi. And with a little out-of-the-box thinking, you can create some really unique designs using only the built-in settings (no custom CSS). So for those of you who want to explore some new header designs, I’m going to show you 5 Divi header module styles that may inspire you.

Enjoy!

Sneak Peek of the 5 Divi Header Module Styles

Style #1: The Abstract Gradient

divi header module

Start Designing Style #1

Style #2: The Triple Threat

divi header module
Start Designing Style #2

Style #3: The Rounded Frame

divi header module
Start Designing Style #3

Style #4: The Blended Lefty

divi header module
Start Designing Style #4

Style #5: The Large Scaling Type

divi header module
Start Designing Style #5

What you need to get started

To get started you will need the Divi Theme. I will be using the Divi Builder to build the designs on the front end. You will also need a few images to complete the tutorial. Remember that you can always import the images of a premade layout. In fact, for this tutorial, I will be using images from the Cleaning Company Layout Pack, the Business Coach Layout Pack, and the Web Freelancer Layout Pack.

Let’s get started!

Subscribe To Our Youtube Channel

Style #1: The Abstract Gadient

divi header module

This first Divi header module design is a simple, multipurpose design that uses gradient backgrounds in a creative way.

To get started, add a new fullwidth section with a fullwidth header module.

divi header module

Update the header settings content with a new title and a Header Image.

divi header module

Then update the design settings as follows:

Title Font: Lato
Title Text Size: 6vw
Button One Background Color: #0c71c3
Button One Border Width: 0px
Custom Padding: 8vw top, 8vw bottom

divi header module

Before we add our section background, we must first make the header module background transparent and give it a custom gradient to create our circle shape in the bottom right corner. Go back to the content tab and update the background as follows:

Background Color: rgba(255,255,255,0)
Background Gradient Left Color: #0096eb
Background Gradient Right Color: rgba(255,255,255,0)
Gradient Type: Radial
Radial Direction: Bottom Right
Start Position: 25%
End Position: 0%

divi header module

Save Settings

Next we need to add our background designs to the section which will sit behind our header module. To do this, open the section settings and update the following:

Background Gradient Left Color: #0096eb
Background Gradient Right Color: #007ea1
Gradient Type: Radial
Radial Direction: Top Left
Start Position: 43%
End Position: 0%

Design Tip: If you are looking for some colors to try out for your own header gradients, I suggest pulling the colors used in the header image/graphic you may be using.

divi header module

To add another subtle design element to our abstract background, we can add a top and bottom section divider. To do this, go to the design tab and add the following dividers:

Top Divider Style: see screenshot
Top Divider Color: rgba(150,210,210,0.2)
Top Divider Height: 8vw
Top Divider Horizontal Repeat: 0.7x
Top Divider Flip: Vertical

Bottom Divider Style: see screenshot
Bottom Divider Color: rgba(150,210,210,0.2)
Bottom Divider Height: 10vw
Bottom Divider Horizontal Repeat: 0.5x
Bottom Divider Flip: Vertical

divi header module

That’s it! Check out the final design.

divi header module

divi header module

Style #2: The Triple Threat

divi header module

This next divi header module style includes three calls to action including the two buttons and the scroll to bottom icon. Matching the button icons with the scroll icon helps the symmetrical aspect of the design. And the section dividers create a nice abstract triangular design that leads the users down the page.

Create a new fullwidth section with a fullwidth header.

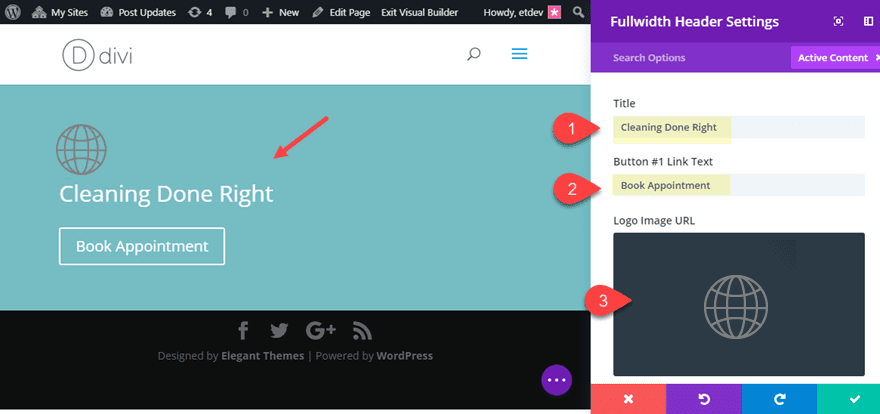

Then update text for the Title, Button #1 Link Text, and Button #2 Link Text.

divi header module

Then update the rest of the design as follows:

Background Color: #1a1844
Text & Logo Orientation: Center
Icon: see screenshot
Scroll Down Icon Size: 20px
Title Font: Lato
Title Font Weight: Heavy
Title Text Size: 5vw (desktop), 40px (tablet), 30px (smartphone)
Title Line Height: 1.3em
Button Two Background Color: #fe4943
Button Two Border Width: 0px
Button Two Icon: right arrow (see screenshot)
Button One Background Color: #fe4943
Button One Border Width: 0px
Button One Icon: left arrow (see screenshot)
Button One Icon Placement: Left
Custom Padding: 10vw top, 10vw left

divi header module

Now all we have to do is add our section dividers to create the triangular background design. Open the section settings and update the following design settings:

Top Divider Style: see screenshot
Top Divider Color: rgba(255,255,255,0.3)
Top Divider Height: 45vw

Top Divider Style: see screenshot
Top Divider Color: rgba(255,255,255,0.1)
Top Divider Height: 45vw

divi header module

Now let’s check out the final design:

divi header module

Bonus Design Tip: Mobile Adjustments for Buttons

I know I said no custom CSS, but this is a non-essential extra flourish I thought some of you would enjoy. You may notice that for headers with two buttons, the second button has a left margin that throws off the design on smartphones. For a cleaner design on smartphones, you can add a snippet of custom CSS to your page settings in order to make the buttons the same width and without the second button margin.

Open the page settings in the Divi Builder and add the following CSS

@media (max-width: 550px){
.et_pb_fullwidth_header .et_pb_fullwidth_header_container .et_pb_button {
  display: block;
  width: 100%;
margin-left: 0px;
  }
}

Now look at the design on mobile.

divi header module

Style #3: The Rounded Frame

divi header module

This rounded divi header module design is a great way to frame your background image and header content to bring even more focus to your call to action. All it takes is some adjustments to the border radius of your header, a box shadow and some custom spacing.

To start, create a new fullwidth section with a fullwidth header.

First, let’s update the content elements for the header by adding the Title, the Button #1 Link text, and a Logo image.

divi header module

Next add a background image that is large enough to span the height and width of the header. Since this will be a rounded header, try to use an image with the same height and width (like 1000px by 1000px).

Then update the rest of the design settings as follows:

divi header module

Save Settings.

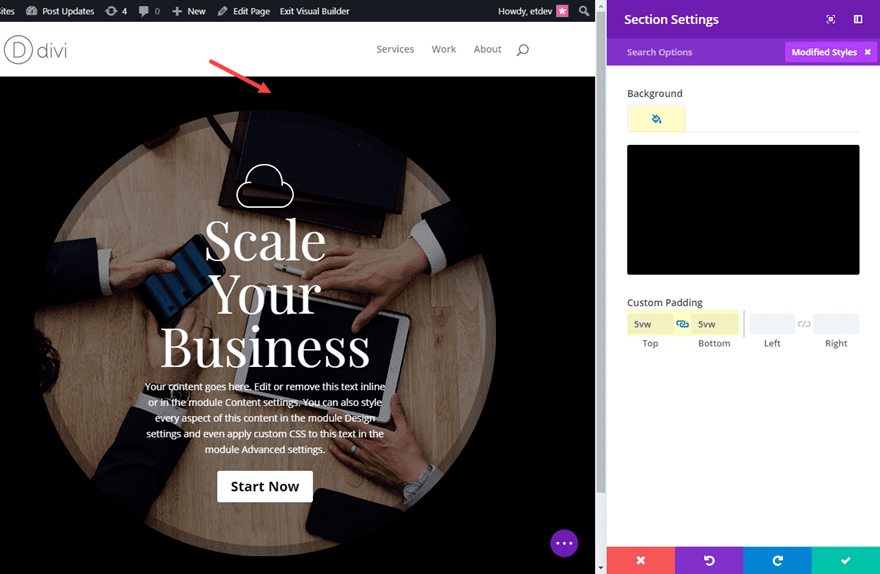

Then open the section settings to add the background color and spacing as follows:

Background Color: #000000
Custom Padding: 5vw top, 5vw bottom

divi header module

Now check out the final design.

divi header module

divi header module

divi header module

The Blended Lefty

divi header module

This header design has a few unique design features. The header module is actually resized and left-aligned to expose the right half of the section background image. And the header module content has a blending effect that exposes the background image through the content. To pull this off, you will need the right kind of background image for your section. Generally, you will want the image to have darker elements so that the blended content will be more visible.

Let’s get started.

First, create a new fullwidth section with a fullwidth header.

Before we start updating our header styles, jump on over to the section settings first and add the following background:

Add a background image with the focal point of the image to the right.

Background Gradient Left Color: rgba(0,0,0,0.54)
Background Gradient Right Color: rgba(255,255,255,0)
Gradient Direction: 90deg
Radial Direction: Bottom Right
Start Position: 50%
End Position: 0%
Place Gradient Above Background Image: YES

The purpose of the gradient is to make the left side of the image darker so that when we blend the header module content it will be more readable. Also, you won’t be able to see the section background right now because the default header background color is still active. We will change that next.

divi header module

Open the header settings and update the content with a Title, Button #1 Link Text, and a dark logo.

divi header module

Now change the background color to white.

Then update the following:

Title Font Weight: Ultra Bold
Title Text Color: #000000
Title text Size: 8vw
Title Line Height: 1.1em
Button ONe text Size: 2.7vw
Button One Text color: #000000
Button One Border Width: 0.2em
Button One Border Color: #edf000
Font Weight: Ultra Bold
Width: 50% (desktop, tablet and smartphone)
Blend Mode: Screen

divi header module

Here is the final design.

divi header module

divi header module

Style #5: The Large Scaling Type

divi header module

This Divi header module design introduces a simple and effective way to create large text that scales with the browser window without compromising the design. Since we are using a fullwidth header module, we will need to expand our content area a bit. Then we need to use the vw length unit to size our text. This design would be great for section headers.

To start, create a new fullwidth section with a fullwidth header.

In the fullwidth header settings, update the following:

Title: Consultation
Subheading Text: Services
Button #1 Link Text: Start Now

Delete the default text in the content box.

Then add a light logo image.

divi header module

Next we are going to increase the default max-width of our header container in order to create more horizontal space for your header. To do this go to the advanced tab and add the follow CSS under Header Container:

width: 100% ;
max-width: 100% ;

divi header module

Now update the rest of the design settings as follows:

Add a background image.
Text & Logo Orientation: Center
Title Font: Cuprum
Title Font Weight: Bold
Title Font Style: TT
Title Text Color: #bfbfbf
Title text Size: 10vw
Title Letter Spacing: 0.1em
Subhead Font: Cuprum
Subhead Text Alignment: Right (this helps center the text with letter spacing)
Subhead Text Size: 3vw
Subhead Letter Spacing: 7.8vw
Button One Border Width: 0px
Button One Font: Cuprum
Button One Icon: see screenshot

The trick is to use the vw length unit for the text. Then adjust the subhead letter spacing to line up with the title text the best you can.

divi header module

In order to maximize our horizontal spacing, we need to add a custom width to our header content as follows:

Content Width: 80%;

Even though this is less than the default 100%, changing the setting will override the default and adjust with the custom css we added earlier.

Finally, a add a box shadow to complete the design:

Box Shadow: see screenshot
Box Shadow Blur Strength: 0px
Box Shadow Spread Strength: 60px

divi header module

Now check out the final result.

divi header module

divi header module

Turn Them Into Fullscreen Headers!

The designs above can easily be made fullscreen with a click of a button. This is a powerful feature of the fullwidth header module. Simply go to the header design settings and select the “Make Fullscreen” option.

divi header module

Also, you will need to take out the custom padding for these designs in order for the header to fit perfectly within the browser window.

Final Thoughts

These are just a few of the header design possibilities available with the Divi Header Module. And experimenting with all the design settings can be a lot of fun. If anything, I hope these examples will serve as a little inspiration for your next project.

I look forward to hearing from you in the comments below.

Cheers!
